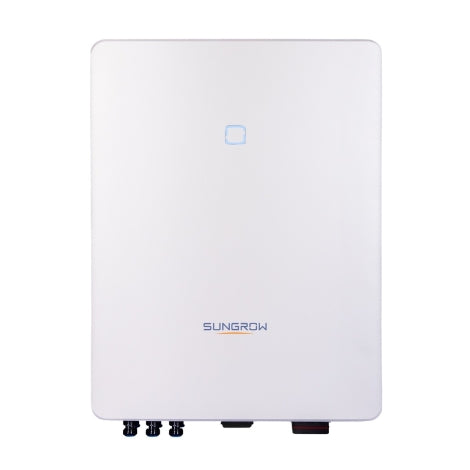

SUNGROW SG25RT-20 HÁROMFÁZISÚ INVERTER
SUNGROW SG25RT-20 HÁROMFÁZISÚ INVERTER
Normál ár
770.000 Ft
Normál ár
Akciós ár
770.000 Ft
Egységár
/
Tartalmazza az adót.
Nem sikerült betölteni az átvehetőségi adatokat
|
Model
|
SG23RT-20
|
SG25RT-20
|
|
Input (DC)
|
||
|
Max. PV input voltage
|
1100V
|
1100V
|
|
Min. PV input voltage / Start-up input voltage
|
180V
|
180V
|
|
Rated input voltage
|
600V
|
600V
|
|
MPP voltage range
|
160V - 1000V
|
160V - 1000V
|
|
No. of independent MPP inputs
|
2
|
2
|
|
No. of PV strings per MPPT
|
2/2
|
2/2
|
|
Max. PV input current
|
54A (27A/27A)
|
54A (27A/27A)
|
|
Max. DC short-circuit current
|
68A(34A/34A)
|
68A(34A/34A)
|
|
Output (AC)
|
||
|
Rated AC power
|
23000W
|
25000W
|
|
Rated AC output apparent power
|
25300VA
|
27500VA
|
|
Max. AC output current
|
36.7A
|
39.8A
|
|
Rated AC voltage
|
3/N/PE,400V
|
3 / N / PE,400V
|
|
AC voltage range
|
270V~480V
|
270V~480V
|
|
Rated grid frequency / Grid frequency range
|
45~55Hz
|
45~55Hz
|
|
Harmonic(THD)
|
<3 %(at rated power)
|
<3 %(at rated power)
|
|
Power factor at nominal power /Adjustable power factor
|
>0.99/0.8 leading-0.8 lagging
|
>0.99/0.8 leading-0.8 lagging
|
|
Efficiency
|
|
|
|
Max. efficiency
|
98.50%
|
98.50%
|
|
European efficiency
|
98.0%
|
98.0%
|
|
Protection&Function
|
|
|
|
Grid monitoring
|
Yes
|
Yes
|
|
DC reverse connection protection
|
Yes
|
Yes
|
|
AC short-circuit protection
|
Yes
|
Yes
|
|
Leakage current protection
|
Yes
|
Yes
|
|
General Data
|
|
|
|
Dimensions (W*H*D)
|
370*480*195mm
|
370*480*195mm
|
|
Mounting method
|
Wall-mounting bracket
|
Wall-mounting bracket
|
|
Weight
|
20 kg
|
21kg
|
|
Degree of protection
|
IP65
|
IP65
|
|
Operating ambient temperature range
|
-25 ºC to 60 ºC
|
-25 ºC to 60 ºC
|
|
Allowable relative humidity range (non-condensing)
|
0% - 100%
|
0% - 100%
|
|
Cooling method
|
Natural cooling
|
Natural cooling
|
|
Max. operating altitude
|
4000 m (>2000 m derating)
|
4000 m (>2000 m derating)
|
|
Display
|
LED
|
LED
|
|
Communication
|
4G
|
4G
|
|
DC connection type
|
MC4
|
MC4
|
|
AC connection type
|
OT / DT
|
OT / DT
|
|
Compliance
|
IEC62109-1 / -2,EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4,NB / T32004-2018
|
IEC62109-1 / -2,EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4,NB / T32004-2018
|
