Technical Specifications
|

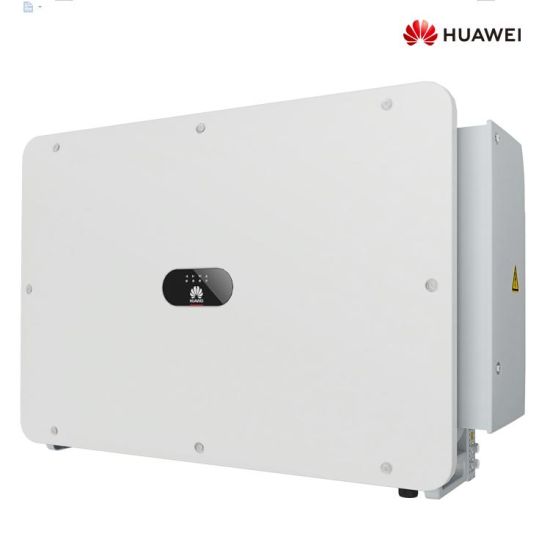

SUN2000-110KTL-M0
|
||
|
Efficiency
|
|||
|
Max.Efficiency
|
98.6%
|
||
|
Chinese Efficiency
|
98.1%
|
||
|
Input
|
|||
|
Max. input voltage
|
1100 V
|
||
|
Max. Input Current per MPPT
|
26A
|
||
|
Max. Input Short Circuit Current per MPPT
|
40A
|
||
|
MPPT Operating voltage range
|
200V- 1000 V
|
||
|
Rated input voltage
|
600V
|
||
|
Number of MPP Trackers
|
10
|
||
|
Max. number of inputs
|
20
|
||
|
Output
|
|||
|
Grid connection
|
three phase
|
||
|
Rated output power
|
110000W
|
||
|
Max. apparent power
|
121000 VA
|
||
|
Rated Output Voltage
|
3x220V/380V, 3x230V/400V, 3W/N+PE
|
||
|
Rated AC Grid Frequency
|
50/60 Hz
|
||
|
Max. output current
|
167.2 A
|
||
|
Adjustable power factor
|
0.8 leading --- 0.8 lagging
|
||
|
Max. Total Harmonic Distortion
|
<3%
|
||
|
Protection
|
|||
|
Input-side Disconnection Device
|
Yes
|
||
|
Anti-islanding Protection
|
Yes
|
||
|
AC Over-current Protection
|
Yes
|
||
|
AC short-circuit protection
|
Yes
|
||
|
AC over-voltage protection
|
Yes
|
||
|
DC reverse-polarity protection
|
Yes
|
||
|
DC surge protection
|
Yes
|
||
|
AC surge protection
|
Yes
|
||
|
Residual Current Monitoring Unit
|
Yes
|
||
|
Arc fault protection
|
Yes
|
||
|
DC MBUS to optimizer
|
Yes
|
||
|
General
|
|||
|
Operation Temperature Range
|
-25ºC---60ºC (Derating above 45ºC)
|
||
|
Relative humidity
|
0%-100%
|
||
|
Max. operating altitude
|
0 - 4000 m (Derating above 2000 m)
|
||
|
Cooling Method
|
Natural Convention
|
||
|
Weight (with mounting plate)
|
85 KG
|
||
|
Dimensions
|
1035×700×365 mm
|
||
|
Protection Degree
|
IP65
|
||
